Mammoth Brewing

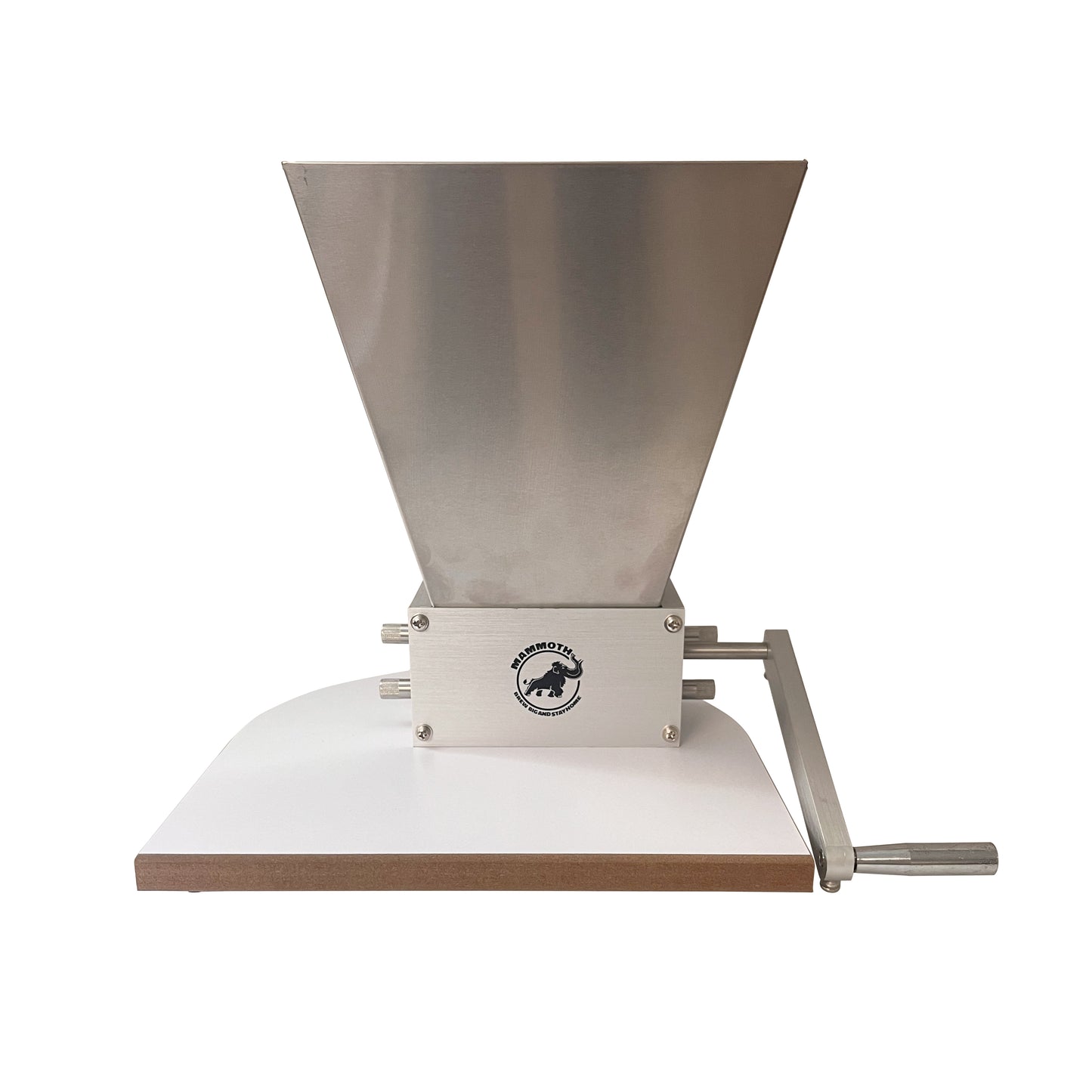

Mammoth Mill - 3 Roller Adjustable Grain Mill

Mammoth Mill - 3 Roller Adjustable Grain Mill

With three rollers, all your grain will be crushed twice in one cycle for the perfect professional grade crush and for maximum efficiency. The initial crush is through the fixed gap between the top two rollers, and then the grain passes through the second gap between the drive roller and the adjustable bottom third roller. The initial pass slightly flattens the grain, getting it ready for the next crush that breaks apart the grains and loosens the starch with minimal husk damage. The Mammoth 3-Roller Grain Mill is constructed using materials that will last a lifetime. It has stainless steel rollers, aluminum body, stainless hopper and bronze brushings. This adjustable 3-roller mill offers a professional grade crush for barley, wheat and other cereals. The hopper can hold up to 6.5lbs (3kg) of grains. A hand crank is included, but the mill can be easily motorized with a corded electric drill for faster and easier use. Stainless knurled knobs allow for easy gap spacing adjustment with a range of 0.70”. Adjusting is simple - just loosen the adjustment screws, adjust the gap and tighten the adjustment screws.

Features:
Width and roller diameter is optimized for use with power drills.
Adjustable rollers to give uniform crush.
12 TPI knurls to efficiently pull grain through, while leaving hulls intact.
152mm (6") long adjustable gap.
0.060 fixed primary gap, 0-0.065 fully adjustable secondary gap.
8 lbs. (3.6kg) / minute is average throughput.
152mm (6") x 38mm (1.5") diameter steel rollers.
Reversible Rollers.
Durable alloy frame.
SAE 841 oil impregnated bronze bushings.
Integral drive shaft and axles.

Specifications:
Rollers: Stainless steel
Grinder housing: Aluminum 6061
Hopper: Stainless steel
Total height: 280mm (11”)
Hopper dimensions at top: 223(8.77”) x 210mm (8.26”)
Footprint size of grinder: 150mm (5.9”) x 88mm (3.46”)
Dimensions: 80mm (3.15”) x 150mm (5.9”) x 80mm (3.15”)
Steel Rollers: ø 32mm (1.2”) x 125mm (4.9”)
Adjustable distance: 0.025 – 0.1 inch (0.635 – 2.54 mm)
Crank handle: 200mm (7.9”)

Instruction Manual Download
